Turning And Milling Machining Center
Flexible Turn-Mill Solution for Automated Production Lines
Description
Technical Parameters

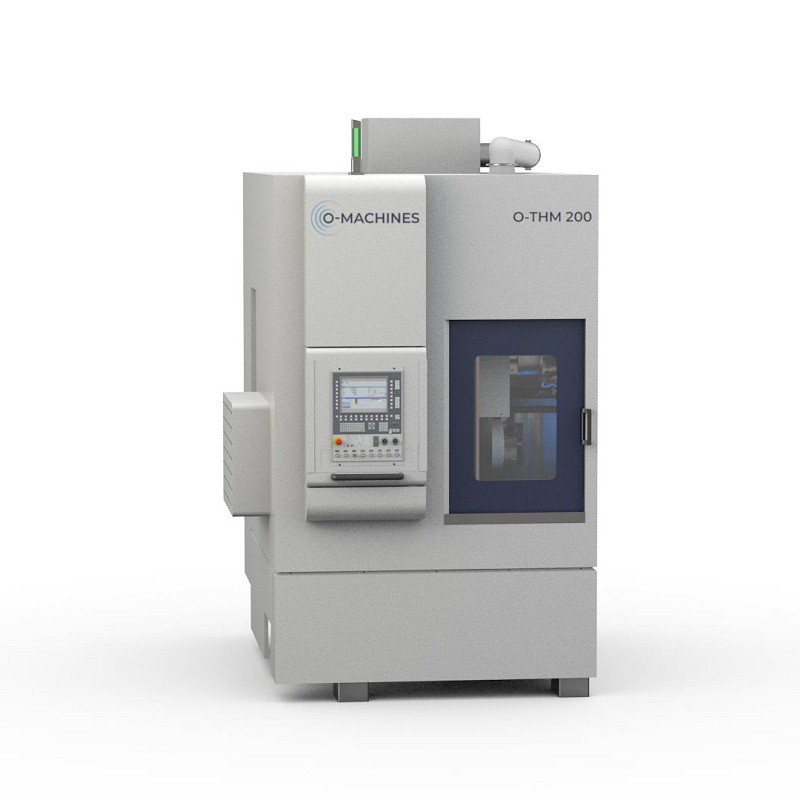

The O-THM 200 is a high-performance turning and milling machining center designed specifically for integration into automated production lines. Combining turning and milling capabilities in a single platform, the machine delivers exceptional flexibility, efficiency, and precision for modern manufacturing environments.
Key Features
Designed for seamless integration into automated production lines

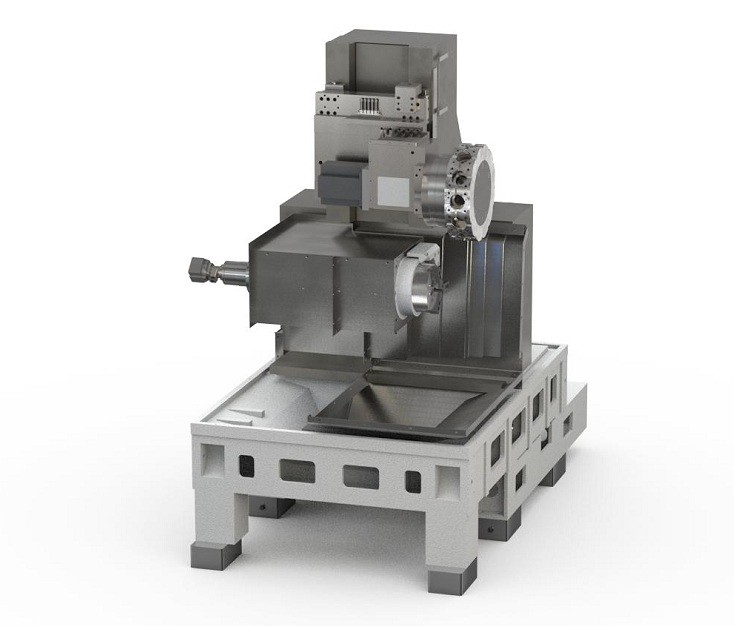

Horizontal lathe platform with high rigidity and stability
Optional driven tool turret for milling, drilling, and tapping operations
Optional Y-axis for complex and off-center machining
Compact and automation-ready design
Flexible configuration for diverse manufacturing requirements
Advantages
Multi-process capability reduces the need for multiple machines
Improved productivity through integrated turning and milling operations
Reduced cycle time and workpiece handling
Higher precision due to fewer setups
Ideal for automated, high-volume production environments
Applications
The O-THM 200 is suitable for machining complex components requiring both turning and milling operations, including automotive parts, precision mechanical components, and general industrial parts. It is widely used in automated production systems across various industries.
Detailed technical parameters
|
Machine Model |
|
O-THM 200 |
|
Max. machining diameter |
mm |
200 |
|
Max. swing over bed |
mm |
250 |
|
Max. machining length |
mm |
200 |
|
X1/X2-axis travel |
mm |
260 |
|
Z1/Z2-axis travel |
mm |
520 |
|
X1/X2/Z1/Z2-axis rapid traverse |
m/min |
20-30 |
|
Spindle nose |
\ |
A2-6 |
|
Rated spindle power |
KW |
22 |
|
Max. spindle speed |
rpm |
4000 |
|
Rated spindle torque |
N.M |
106 |
|
Number of tool stations |
T |
12*2 |
