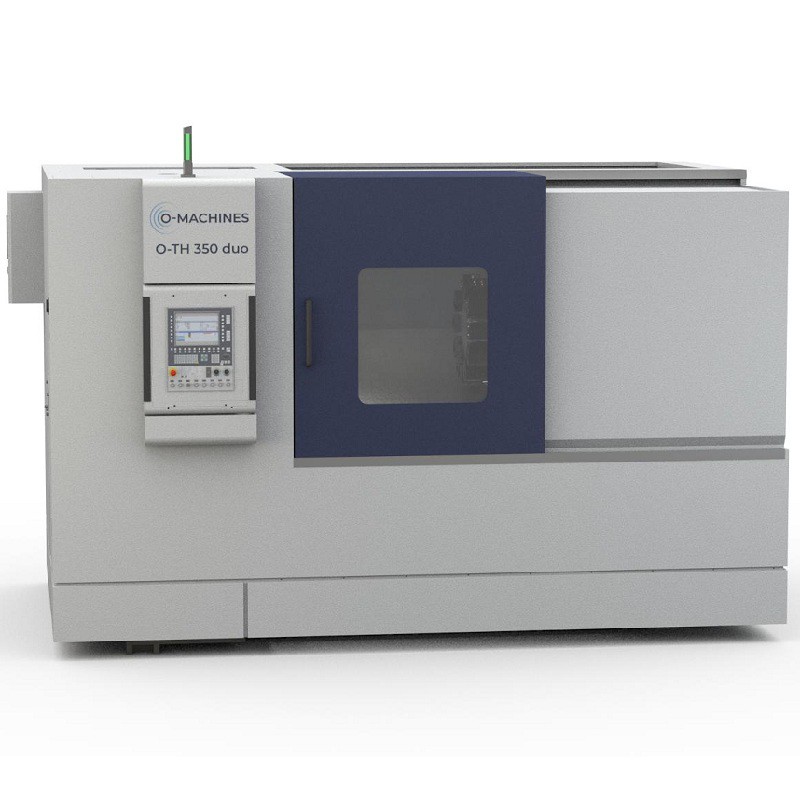

Horizontal Turning Center
Flexible Multi-Configuration Turning Platform for Advanced Machining
Description
Technical Parameters
The O-TH Duo Series Horizontal Turning Center are designed to provide maximum flexibility and productivity across a wide range of machining applications. With multiple configuration options, the machines can be tailored to meet specific production requirements, from standard turning to complex multi-process machining.
Flexible Configurations
Available with one or two spindles depending on application requirements
Dual-turret configuration enabling turning, milling, drilling, and tapping operations
Single turret with additional grinding spindle for combined turning and grinding processes
Key Features
Parallel or independent machining on dual spindles
Automatic workpiece transfer between spindles at high speeds
Reduced auxiliary time and improved production efficiency
Optional Y-axis for complex and off-center machining
High rigidity and stable machine structure
Designed for automated production environments
Advantages
Maximum flexibility through multiple machine configurations
Reduced cycle time with simultaneous machining operations
Improved productivity with automatic spindle-to-spindle transfer
Multi-process capability including turning, milling, and grinding
Consistent machining accuracy and quality
Ideal for high-volume and automated production lines
Applications
The O-TH Duo Series is suitable for machining a wide range of components, including shafts, flanges, precision mechanical parts, and complex components requiring multiple machining processes. It is widely used in automotive, aerospace, energy, and general machinery industries.
Detailed technical parameters
|
Machine Model |
|
|
O-TH 200 duo |
|
Max. machining diameter |
mm |
200 |
|
|
Max. swing over bed |
mm |
350 |
|
|
Max. machining length |
mm |
200 |
|
|
X1/X2-axis travel |
mm |
230 |
|
|
Z1/Z2-axis travel |
mm |
680 |
|
|
X1/X2/Z1/Z2-axis rapid traverse |
m/min |
20-30 |
|
|
Spindle nose |
\ |
A2-6 |
|
|
Rated spindle power |
KW |
22 |
|
|
Max. spindle speed |
rpm |
4000 |
|
|
Rated spindle torque |
N.M |
106 |
|
|
Number of tool stations |
T |
12*2 |
