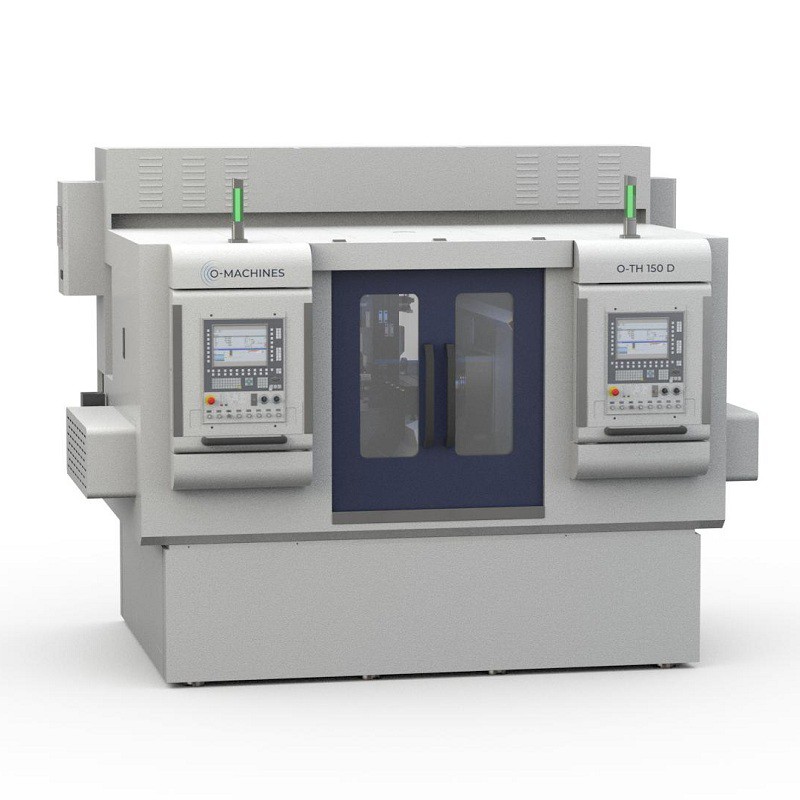

Horizontal Turning Center with Two Spindles

O-TH 150 D
Compact Dual-Spindle Solution for High-Precision and High-Efficiency Turning

Send Inquiry

Description

Technical Parameters

The O-TH 150 D Horizontal Turning Center with Two Spindles is a high-precision horizontal turning center designed with two spindles integrated within a single working area. This configuration enables continuous machining and significantly improves productivity while maintaining excellent accuracy.

Key Features

Dual-spindle configuration within a single working area

Automatic loading and unloading system

Direct workpiece transfer between spindles for second-operation machining

Compact and space-efficient machine layout

High-precision machining performance

Advantages

Exceptional productivity through continuous machining

Reduced cycle time by eliminating manual part transfer

Improved accuracy with minimized re-clamping

Optimized floor space utilization

Stable and consistent machining quality

Applications

The O-TH 150 D Horizontal Turning Center with Two Spindles is ideal for machining precision components requiring multiple operations, including shafts, bushings, flanges, and other high-precision parts. It is widely used in automotive, precision engineering, and general machinery industries.

Detailed technical parameters

Machine Model		O-TH 150 D
Max. machining diameter	mm	150
Max. swing over bed	mm	350
Max. machining length	mm	80
X1/X2-axis travel	mm	250
Z1/Z2-axis travel	mm	500
X1/X2/Z1/Z2-axis rapid traverse	m/min	20-30
Spindle nose	\	A2-6
Rated spindle power	KW	17.3
Max. spindle speed	rpm	4000
Rated spindle torque	N.M	110
