Lathe For End Facing And Chamfering
High-Efficiency Dual-Turret Solution for Simultaneous End Machining
Description
Technical Parameters

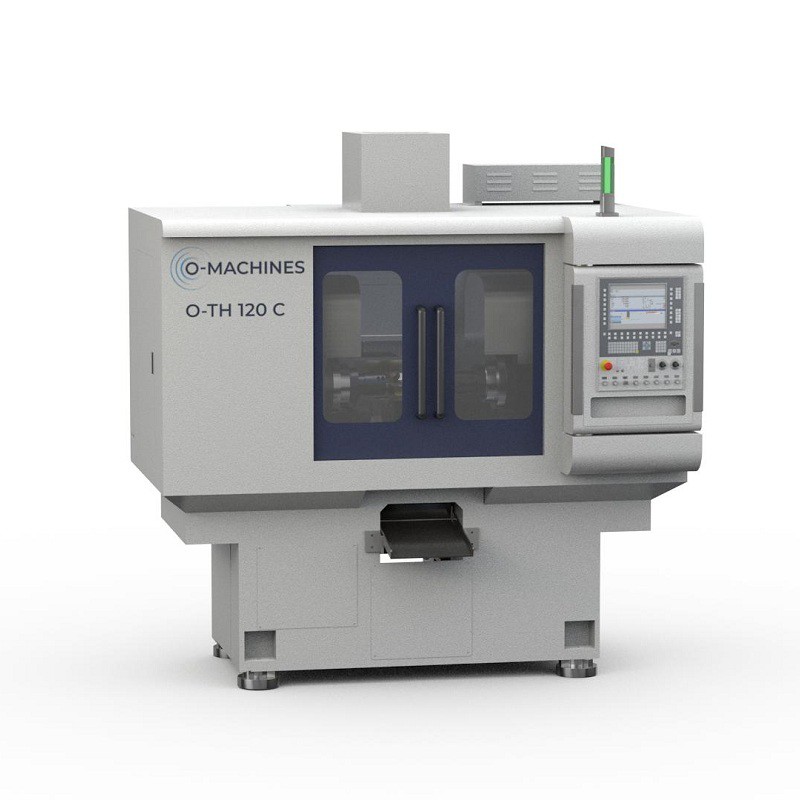

The O-TH 120 C is a fully automated lathe specifically designed for simultaneous end facing and chamfering operations on both ends of a workpiece. Its unique central clamping concept combined with a dual-turret configuration ensures maximum efficiency and precision in high-volume production environments.
Key Features
Central clamping of the workpiece for optimal stability
Simultaneous machining on both ends with dual turrets
End facing and internal/external chamfering in a single setup
Fully automated operation for high productivity
Quick and easy changeover for different workpiece sizes
Compact and efficient machine design
Advantages
Minimal cycle time through simultaneous dual-end machining
Improved accuracy with reduced re-clamping
High productivity for mass production
Flexible adaptation to different part sizes
Stable and consistent machining quality
Applications
The O-TH 120 C Lathe For End Facing And Chamfering is ideal for machining components requiring precise end facing and chamfering, including tubes, bars, shafts, and cylindrical parts. It is widely used in automotive, energy, and general machinery industries.
Detailed technical parameters
|
Machine Model |
|
O-TH 120 C |
|
Max. machining diameter |
mm |
150 |
|
Max. machining length |
mm |
500 |
|
Z1/Z2-axis travel |
mm |
150 |
|
X/Z-axis rapid traverse |
m/min |
20-30 |
|
Rated spindle power |
KW |
3 |
|
Max. spindle speed |
rpm |
1500 |
|
Number of tool stations |
T |
3*2 |
