Horizontal Turning Center With Central Drive
Central Drive Dual-Turret Solution for High-Precision Tube and Bar Machining
Description
Technical Parameters

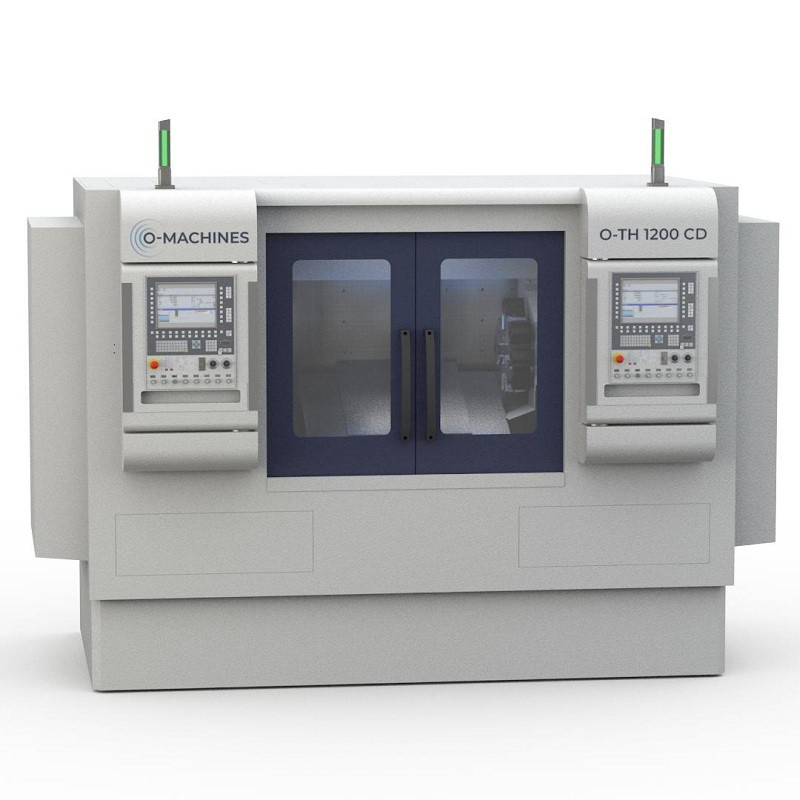

The O-TH 1200 CD Horizontal Turning Center With Central Drive is a high-performance horizontal turning center designed for efficient machining of tubes and bar-type workpieces. Featuring a central drive spindle and dual-turret configuration, the machine enables simultaneous machining of both ends, ensuring superior productivity and precision.
Key Features
Central drive spindle with workpiece clamping at the center
Simultaneous machining of both ends of the workpiece
Dual-turret system for parallel operations
High coaxial machining accuracy
Integrated automatic transport system
Optimized for tube and bar-type components
Advantages
Exceptional coaxial accuracy due to central clamping
Reduced cycle time with simultaneous end machining
Improved productivity through dual-turret operation
Stable and consistent machining quality
Automated material handling improves efficiency
Applications
The O-TH 1200 CD Horizontal Turning Center With Central Drive is ideal for machining tubes, pipes, and bar-type components requiring high coaxial precision. It is widely used in industries such as energy, oil & gas, automotive, and general machinery manufacturing.
Detailed technical parameters
|
Machine Model |
|
O-TH 1200 CD |
|
Max. machining diameter |
mm |
120 |
|
Max. swing over bed |
mm |
200 |
|
Max. machining length |
mm |
1200 |
|
X1/X2-axis travel |
mm |
240 |
|
Z1/Z2-axis travel |
mm |
600 |
|
X1/X2/Z1/Z2-axis rapid traverse |
m/min |
20-30 |
|
Rated spindle power |
KW |
7.5 |
|
Max. spindle speed |
rpm |
2000 |
|
Number of tool stations |
T |
12*2 |
