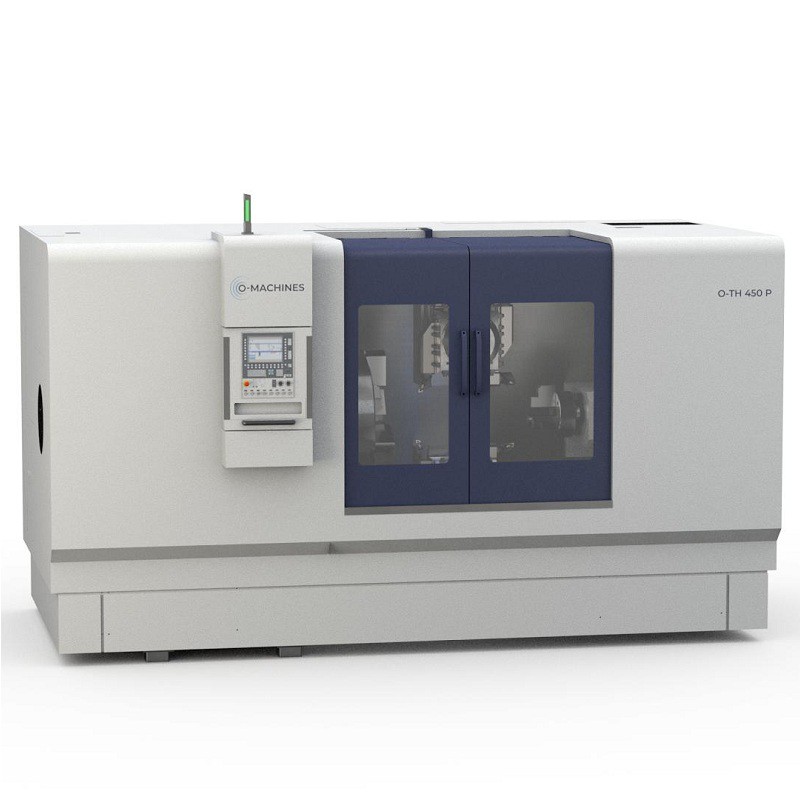

Pipe Threading Machines
High-Precision Pipe Threading Solution for Standard and Premium Threads
Description
Technical Parameters
The O-TH P Series Pipe Threading Machines are specifically engineered for high-precision threading of pipes, including premium thread types. Designed for demanding industrial applications, the machines deliver excellent rigidity, stability, and consistent threading quality.
Key Features
Specialized for pipe threading, including premium thread standards
Dual chuck clamping system (front and rear spindle ends)
Two operating modes: compensating and centering
Two rigid turrets for efficient machining
Modular carriage for flexible configuration
Optional centering device and damping plug installation
Advantages
High precision threading with stable workpiece support
Improved machining quality for premium threads
Flexible clamping modes for different pipe conditions
Enhanced vibration control for better surface finish
Reliable performance in heavy-duty applications
Applications
The O-TH P Series is ideal for threading pipes used in oil & gas, energy, and industrial applications. It supports standard and premium thread types required for high-performance piping systems.
Detailed technical parameters
|
Machine Model |
|
|
O-TH 450 P |
|
Max.chuck diameter |
mm |
450 |
|
|
Max.diameter of pipe to be machined |
mm |
426 |
|
|
X1/X2-axis travel |
mm |
350 |
|
|
Z1/Z2-axis travel |
mm |
600 |
|
|
Rated spindle power |
KW |
84 |
|
|
Rated spindle torque |
N.M |
4000 |
|
|
Number of tool stations |
T |
2 |
