Slant Bed Automatic Lathe
Modular High-Efficiency Turning Solution for Parts up to Ø200 mm
Description
Technical Parameters

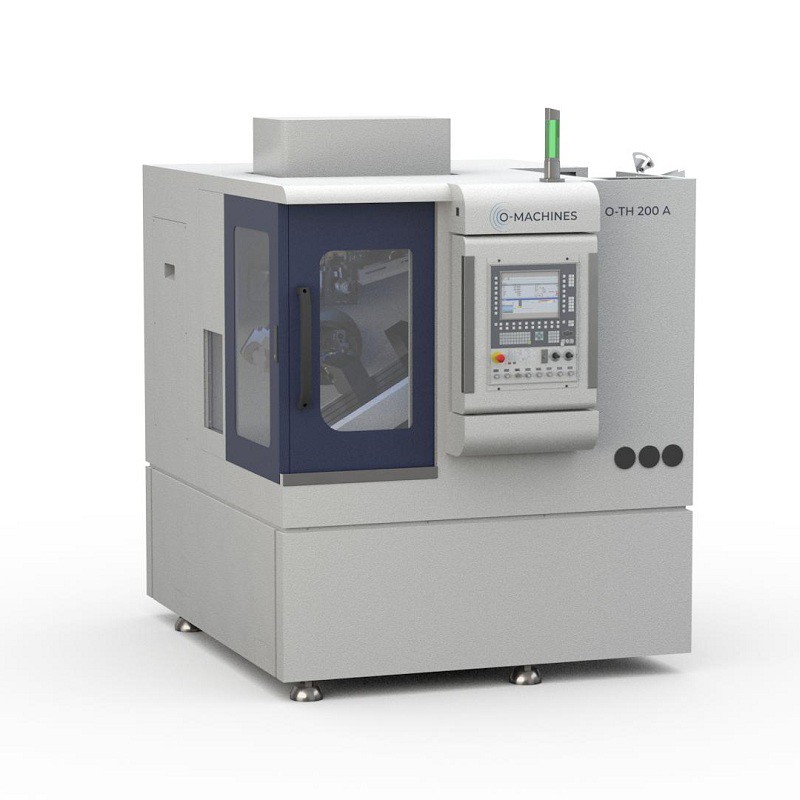

The O-TH 200 A Slant Bed Automatic Lathe is a fully automatic, modular turning solution designed for high-efficiency machining of parts with diameters up to 200 mm. It is ideal for applications requiring consistent quality, high throughput, and seamless integration into automated production lines.
Key Features
Fully automatic and modular machine concept
Designed for parts up to 200 mm in diameter
Integrated automatic transfer system for continuous production
45° slant bed design for efficient chip evacuation
Easy integration into automated production lines
Single-operator control for entire production line
Advantages
High productivity with automated workflow
01
Reduced labor cost with one-operator line management
02
Improved chip evacuation and machining stability
03
Consistent machining quality in mass production
04
Flexible modular configuration for different applications
05
Applications
The O-TH 200 A Slant Bed Automatic Lathe is suitable for machining a wide range of components, including bearing rings, automotive parts, sleeves, and flange-type components. It is widely used in automotive, bearing, and general machinery industries.
Detailed technical parameters
|
Machine Model |
|
O-TH 200 A |
|
Max. machining diameter |
mm |
200 |
|
Max. swing over bed |
mm |
450 |
|
Max. machining length |
mm |
80 |
|
X-axis travel |
mm |
350 |
|
Z-axis travel |
mm |
250 |
|
X/Z-axis rapid traverse |
mm |
20-30 |
|
Spindle nose |
\ |
A2-6 |
|
Rated spindle power |
KW |
7.5 |
|
Max. spindle speed |
rpm |
3000 |
|
Rated spindle torque |
N.M |
35.8 |
